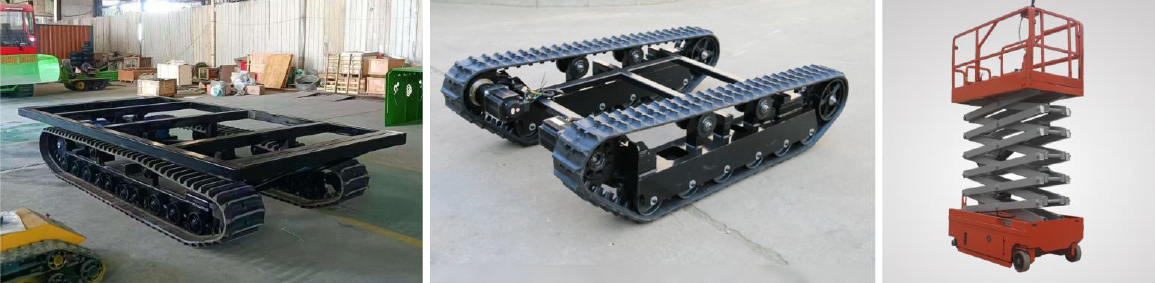

The AM0-D is a dual AC motor controller,suitable for electric traction aerial work platforms and mobile elevating work platforms, such as scissor lifts, vertical mast lifts, and articulating boom lifts. It is also well-suited for other dual-drive electric traction applications.
Supports vector control of AC induction motors
PWM technology reduces motor harmonics and torque ripple
Equipped with the latest vehicle motion control algorithms
Offers extensive interface options, Support 35-pin AMP
Compact design without compromising standards; compliant with EN1175-2020 safety standards, supporting travel functions up to PL=d / Category 2
Comprehensive protection features including over-voltage, under-voltage, over-current, and temperature safeguards
Low-power output ports with short-circuit and open-circuit protection
Rugged sealed housing and connectors rated to IP65, suitable for harsh environments
Supports dual AC motor applications with flexible software configuration
Compatible with permanent magnet synchronous motors for enhanced system efficiency
Rich I/O interface options
Supports CAN, serial, and Bluetooth debugging for unmatched flexibility
Specifications
| Model | Rated Voltage(v) | 2-Minute Output Current (Arms) | 60-Minute Output Current (Arms) |
| AM0-D-2201 | 24 | 200 | 70 |
| AM0-D-2251 | 24 | 250 | 87 |
| AM0-D-4201 | 48 | 200 | 70 |
| AM0-D-4251 | 48 | 250 | 87 |
| Connector Type | 35PIN AMP | ||
| Dimensions L*W*H(mm) | 205*123*70.2 | ||
| Communication | CAN / Serial | ||
| Working Temperature | -30℃~55℃ | ||
| Storage Temperature | -40℃~85℃ | ||
| IP rating | IP65 | ||
| Motor Type | AC Induction Motor、Permanent Magnet Synchronous Motor (PMSM) | ||
| Encoder Type | Incremental AB+ Incremental AB/ABl(llFProtocol) | ||
