Safety · Reliability · Convenience

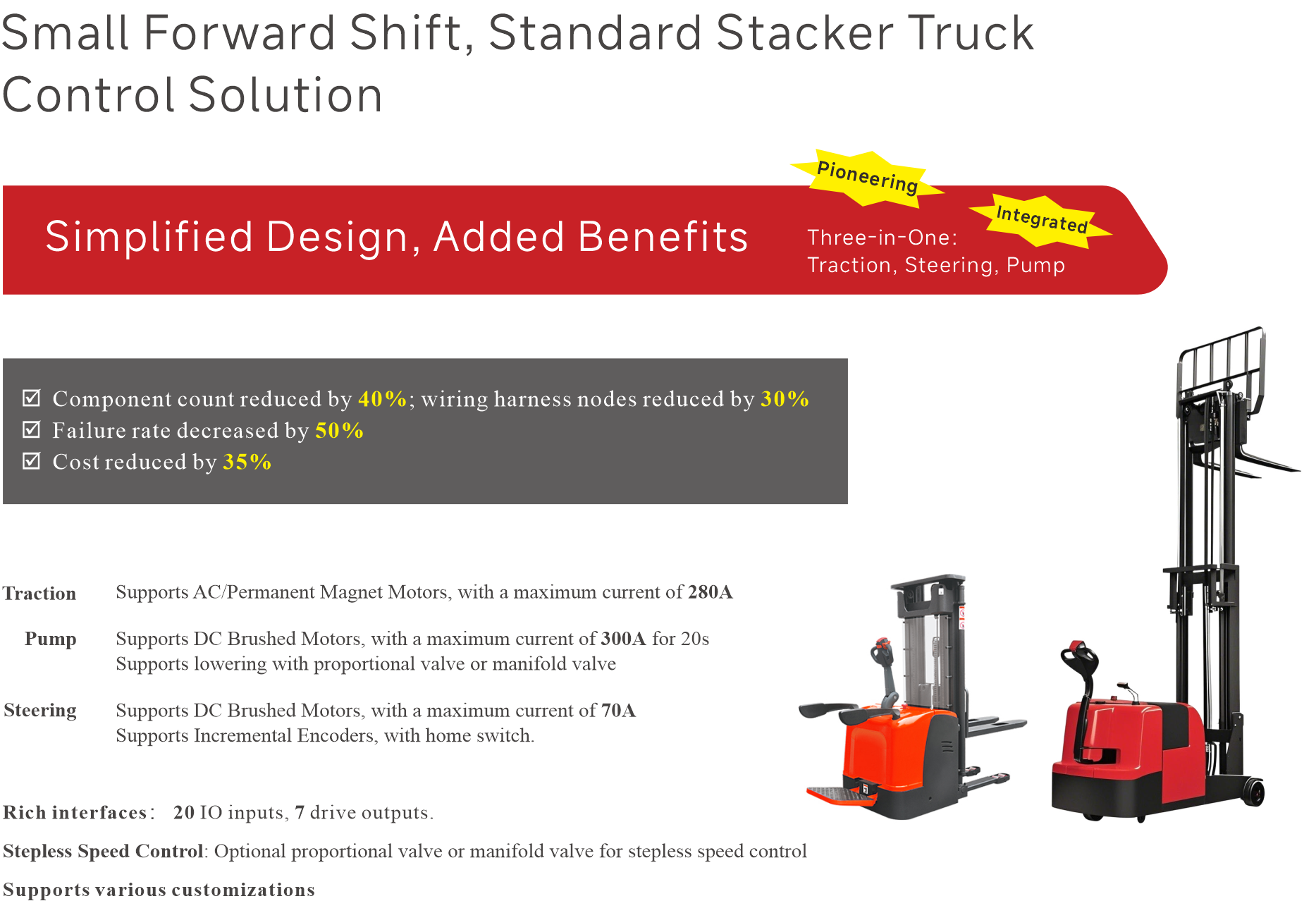

• As the industry's first solution to integrate traction, DC pump, and brushed steering control, this controller reduces system failures and vehicle costs while enhancing maintainability.

• Compact yet uncompromising in standards, it is designed in accordance with EN1175-2020 safety requirements.

• Traction control supports PL=d / Category 2

• Steering control supports PL=d / Category 3

• Features include comprehensive protection against overvoltage, undervoltage, overcurrent, and overheating.

• Low-power output ports come with short-circuit and open-circuit protection.

• A rugged, sealed housing and connectors meet IP65 standards, ensuring reliable performance in harsh environments.

Highly Flexible and Configurable

• Supports various application combinations (traction, pump, steering), easily configured via software

• Compatible with IPM motors for enhanced system efficiency

• Rich I/O interface:

• Up to 27 digital inputs

• 2 potentiometer inputs

• 7 low-power outputs and 1 analog voltage output

• Up to 4 quadrature encoder inputs

• 5V and 12V outputs with short-circuit protection

• Supports CAN, serial, and Bluetooth for debugging, delivering unmatched flexibility

• Traction motor encoder supports sin/cos type
